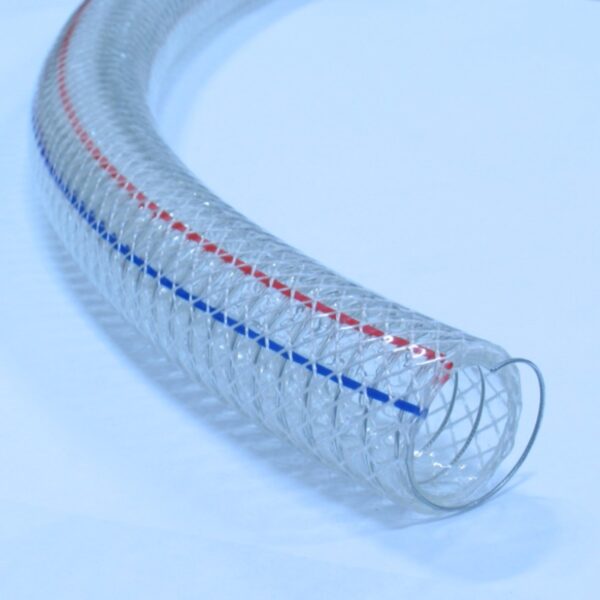

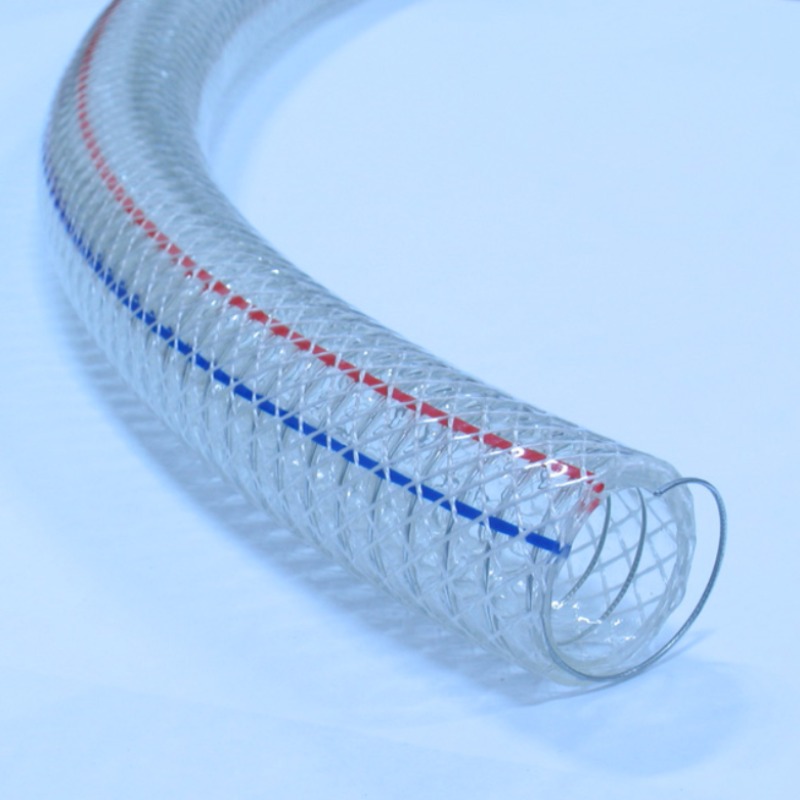

PVC Steel Wire & Fiber Reinforced Hose

Transparent, non-toxic, flexible, corrosion-resistant, wear-resistant, good resistance to minus pressure, easy to install.

  • Structure: PVC inner tube, inlaid galvanized steel wire spiral framework, middle fiber reinforcement layer and PVC outer cover.
  • Applications: Mainly used for conveying and drawing water, oil and powder in industry, agriculture and engineering.
  • Working Temperature: -5℃~60℃
Item No. Size I.D. O.D. Length W.P. B.P. Weight
Inch mm mm m/roll Bar Bar kg/roll
GSXW-19×3.5 3/4″ 19 26 50 8 24 20
GSXW-25×3.5 1″ 25 32 50 7 21 25
GSXW-32×4 1-1/4″ 32 40 50 5 15 35
GSXW-38×4.5 1-1/2″ 38 47 50 5 15 45
GSXW-50×4.5 2″ 50 59 50 5 15 65
GSXW-64×6 2-1/2″ 64 76 30 4 12 63
GSXW-75×6.5 3″ 75 88 30 4 12 78
GSXW-102×7 4″ 102 116 30 3 9 120
