| Item No. | Size | I.D. | O.D. | Length | W.P. | B.P. | Weight |
| Inch | mm | mm | m/roll | Bar | Bar | kg/roll | |
| GS-10×3 | 3/8″ | 10 | 16 | 100 | 10 | 30 | 19 |
| GS-12×3 | 1/2″ | 12 | 18 | 100 | 9 | 27 | 22 |
| GS-16×3 | 5/8″ | 16 | 22 | 100 | 9 | 27 | 27 |
| GS-19×2.5 | 3/4″ | 19 | 24 | 50 | 8 | 24 | 13 |
| GS-25×3 | 1″ | 25 | 31 | 50 | 7 | 21 | 20 |
| GS-32×3 | 1-1/4″ | 32 | 38 | 50 | 5 | 15 | 25 |
| GS-38×3.5 | 1-1/2″ | 38 | 45 | 50 | 5 | 15 | 35 |
| GS-50×4 | 2″ | 50 | 60 | 50 | 5 | 15 | 60 |
| GS-64×5 | 2-1/2″ | 64 | 74 | 30 | 4 | 12 | 54 |
| GS-75×5 | 3″ | 75 | 85 | 30 | 4 | 12 | 60 |
| GS-102×5 | 4″ | 102 | 112 | 30 | 3 | 9 | 90 |
| GS-127×7 | 5″ | 127 | 141 | 10 | 3 | 9 | 50 |
| GS-152×7 | 6″ | 152 | 166 | 10 | 3 | 9 | 60 |
| GS-203×10 | 8″ | 203 | 223 | 10 | 3 | 9 | 120 |

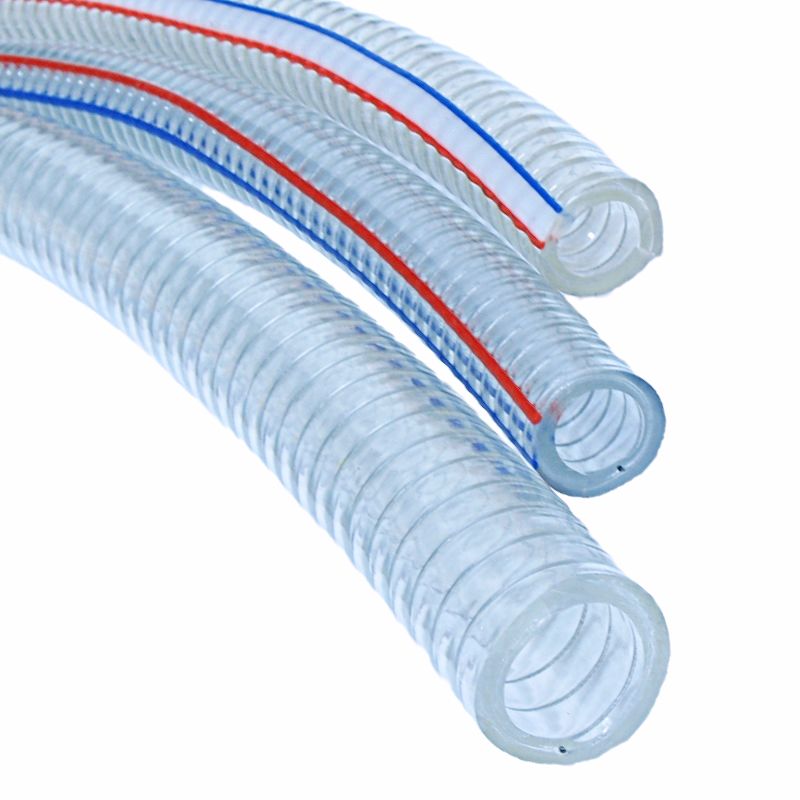

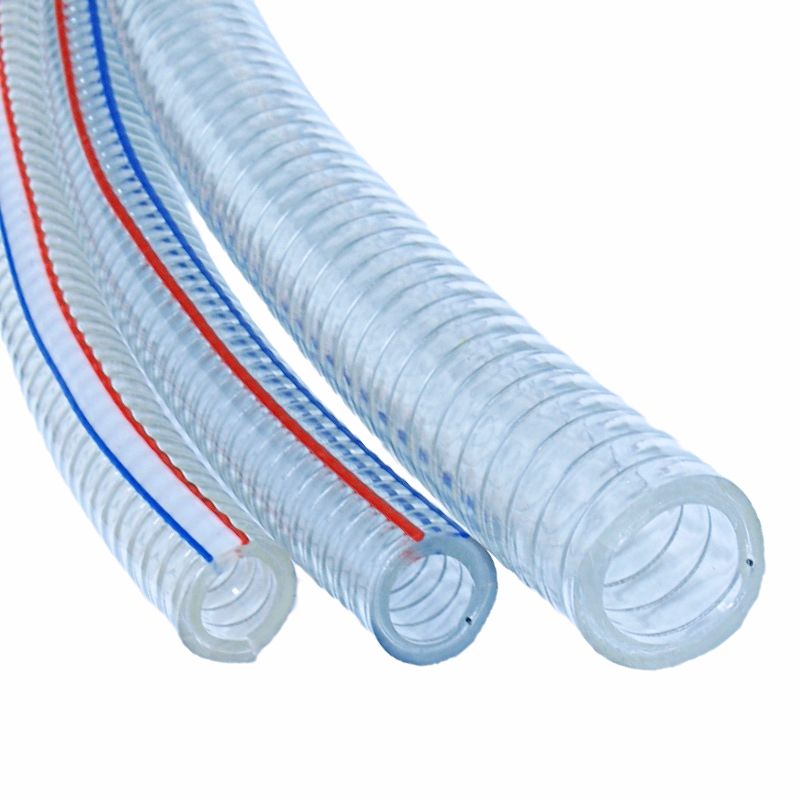

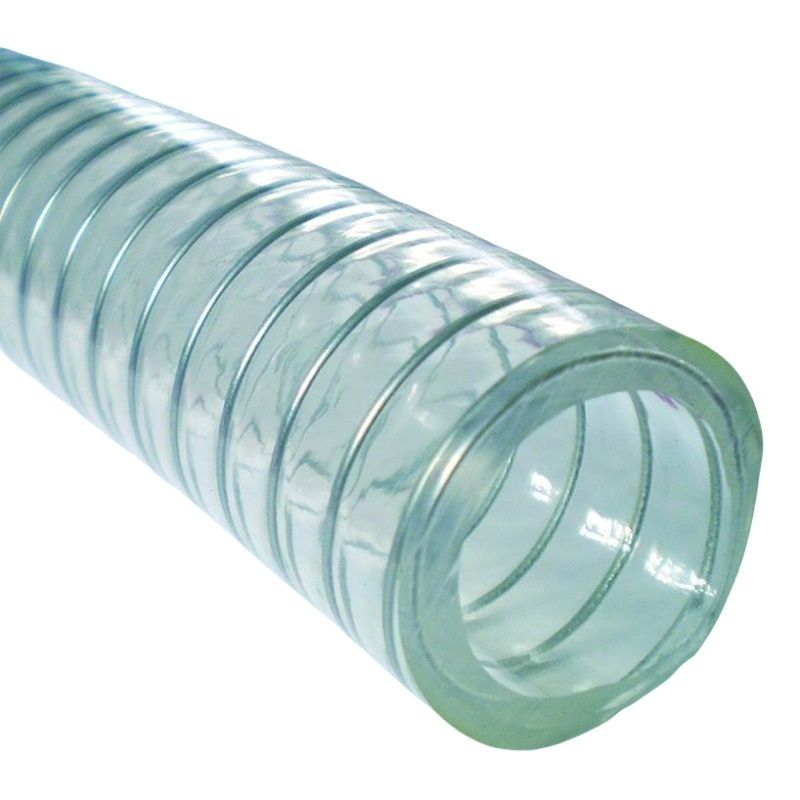

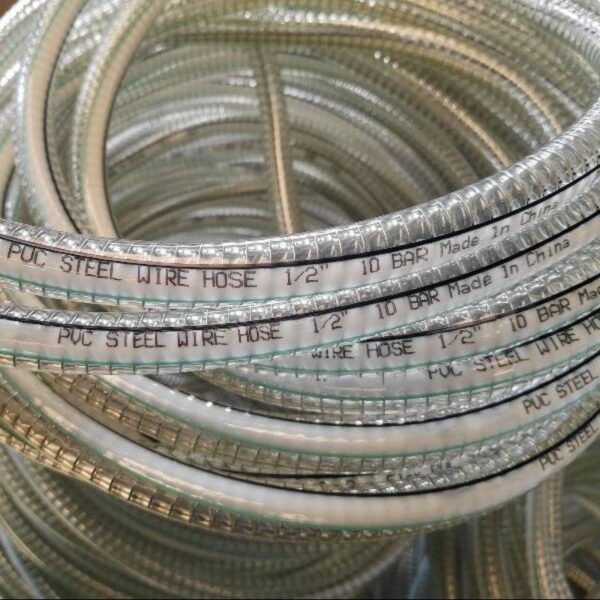

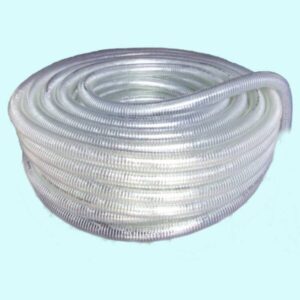

Normal Grade PVC Steel Wire Hose
Transparent, non-toxic, flexible, corrosion-resistant, wear-resistant, good resistance to minus pressure, easy to install.
- Structure: PVC hose wall and inlaid galvanized steel wire spiral framework.
- Applications: Mainly used for conveying and drawing water, oil and powder in industry, agriculture and engineering.
- Working Temperature: -5℃～60℃
