| Item No. | Size | I.D. | O.D. | Length | W.P. | B.P. | Weight |
| Inch | mm | mm | m/roll | Bar | Bar | kg/roll | |
| SD-25×8 | 1″ | 25 | 28 | 100 | 8 | 24 | 20 |
| SD-32×8 | 1-1/4″ | 32 | 35 | 100 | 8 | 24 | 23 |
| SD-38×8 | 1-1/2″ | 38 | 41 | 100 | 8 | 24 | 30 |
| SD-51×8 | 2″ | 51 | 54 | 100 | 8 | 24 | 38 |
| SD-64×8 | 2-1/2″ | 64 | 68.6 | 100 | 8 | 24 | 65 |
| SD-76×8 | 3″ | 76 | 80.6 | 100 | 8 | 24 | 85 |
| SD-102×8 | 4″ | 102 | 106.6 | 100 | 8 | 24 | 105 |
| SD-127×8 | 5″ | 127 | 133 | 100 | 8 | 24 | 150 |
| SD-152×8 | 6″ | 152 | 158 | 100 | 8 | 24 | 200 |
| SD-203×8 | 8″ | 203 | 209 | 100 | 8 | 24 | 300 |

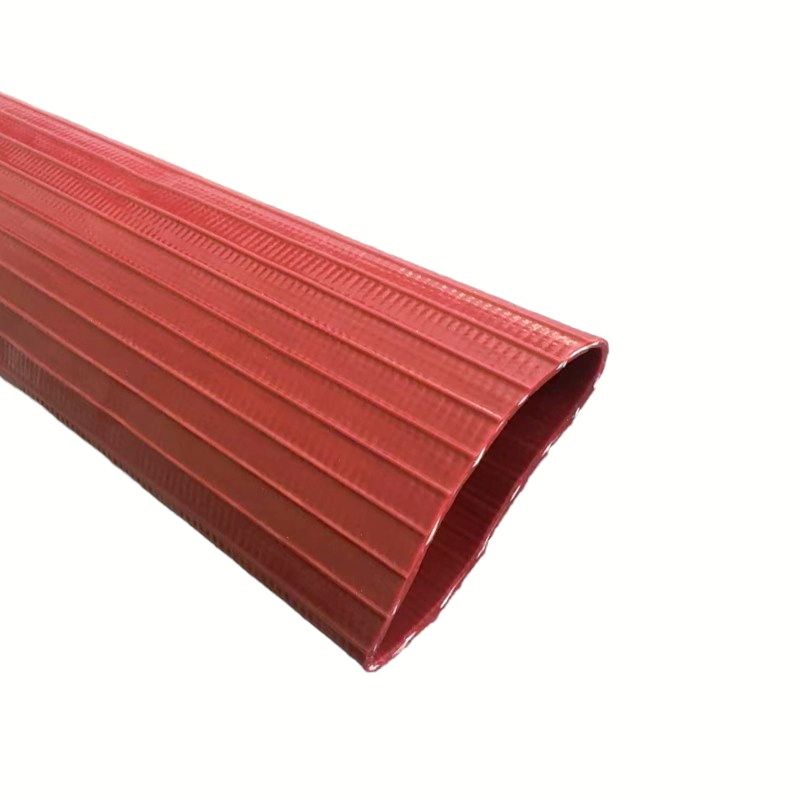

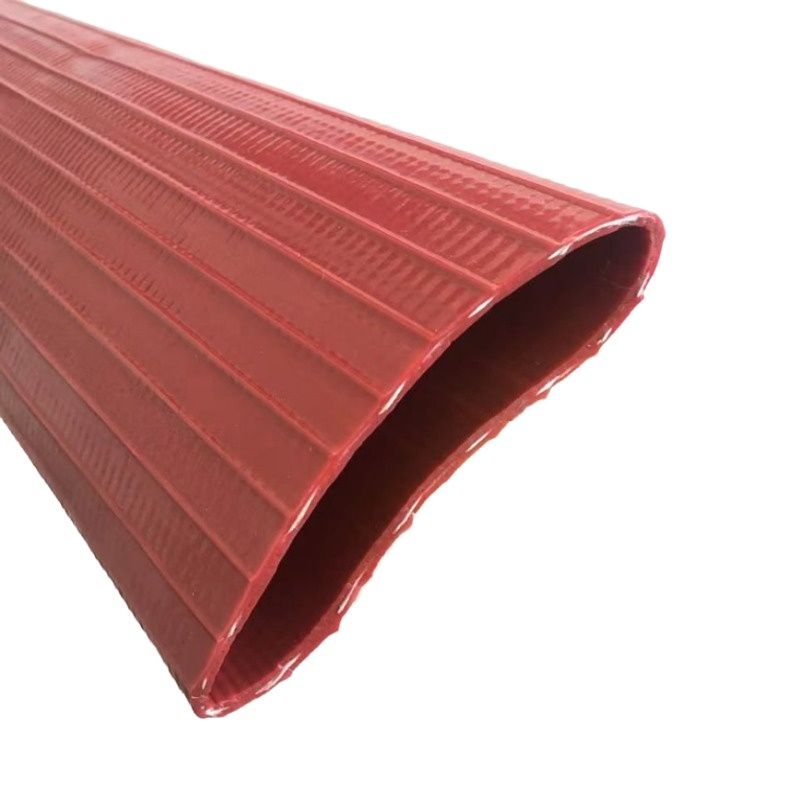

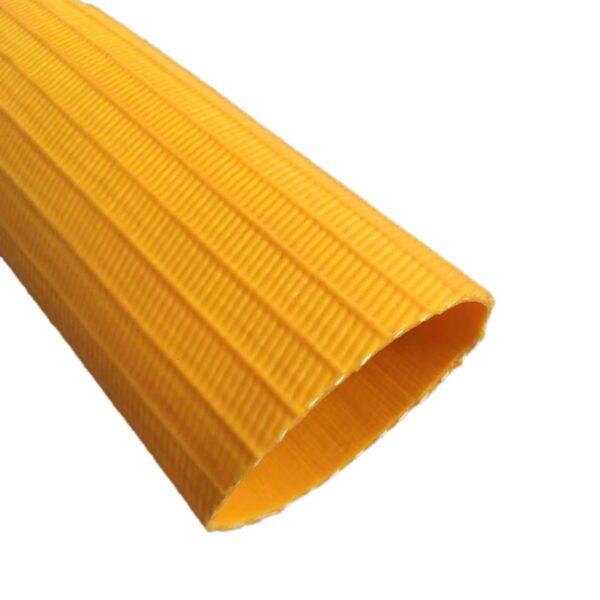

8 Bar PVC Lay Flat Hose
Flexible, anti-high pressure, corrosion resistance and aging resistance.
- Structure: PVC inner layer, middle fiber reinforcement layer and PVC outer layer.
- Applications: Mainly used for agricultural irrigation and firefighting
- Working Temperature: -5℃～60℃
