| Item No. | Size | I.D. | O.D. | Length | W.P. | B.P. | Weight |
| Inch | mm | mm | m/roll | Bar | Bar | kg/roll | |
| PS-8×2.5 | 5/16″ | 8 | 13 | 100 | 20 | 60 | 11.1 |
| PS-8×3 | 5/16″ | 8 | 14 | 100 | 20 | 60 | 14 |
| PS-8.5×2.75 | 5/16″ | 8.5 | 14 | 100 | 20 | 60 | 13.1 |
| PS-8.5×3 | 5/16″ | 8.5 | 14.5 | 100 | 20 | 60 | 14.6 |
| PS-10×3 | 3/8″ | 10 | 16 | 100 | 20 | 60 | 16.5 |
| PS-19×4.5 | 3/4″ | 19 | 28 | 60 | 20 | 60 | 27 |

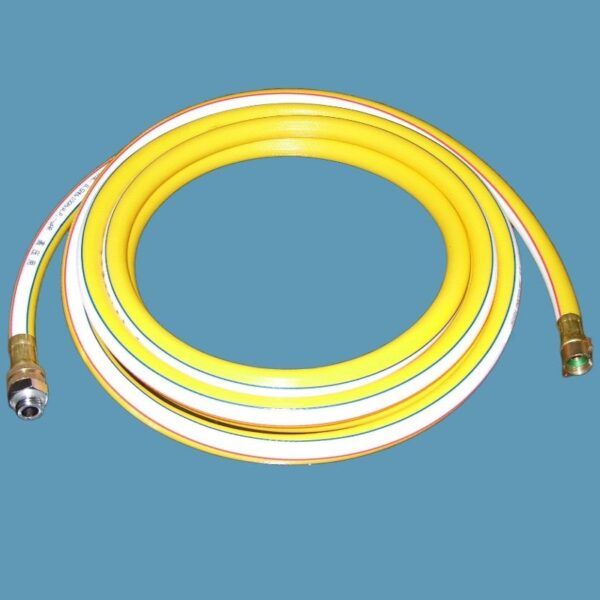

3 layer PVC High Pressure Spray Hose
It can withstand high pressure, has a thick pipe wall and high strength.
- Structure: PVC inner tube, middle one winding high strength fiber reinforcement layer and PVC outer cover.
- Applications: Used in high pressure cleaning equipment, pesticide spraying in agriculture and other scenarios where high pressure spraying is required.
- Working Temperature: -5℃～60℃
